Stirlich Uncoilers
No longer available
Stirlich Uncoilers
Venetia, PA
Description

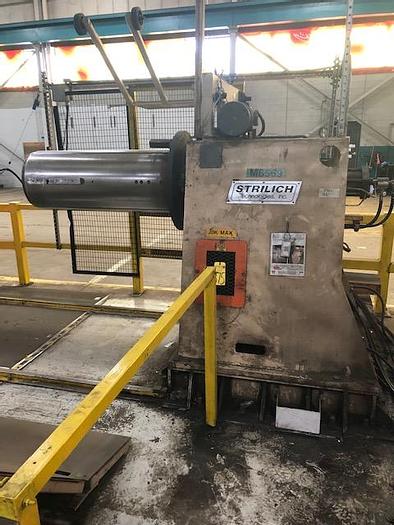

20,000 LB x 48" WIDE STIRLICH MOTORIZED UNCOILER
Heavy steel cover leaves with tapered nose for easy coil loading
Graduated scale provided on cover leaves for ease of coil positioning
Alloy mandrel shaft mounted in heavy duty tapered roller bearings
Wedge type expansion provides coil stability and constant hydraulic loading through the entire expansion range
Forward and reverse feed-up threading drive actuated through hydraulic motor with pneumatic clutch arrangement
Air-cooled pneumatic drag brake automatic pressure control to adjust back-tension proportionate to coil outside diameter
Hydraulic power supplied from main hydraulic unit
Heavy duty welded steel construction base
Specifications
Manufacturer | Stirlich |
Condition | Used |
Stock Number | 2003f |
Coil weight | 20,000 lbs. maximum |
Coil width | 48” maximum, 18” minimum |
Coil o.d | 72” maximum, 24” minimum |
