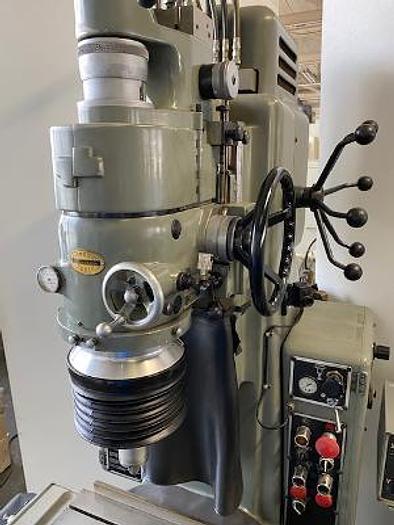

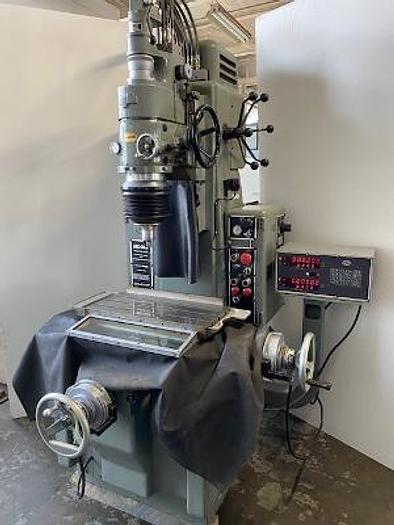

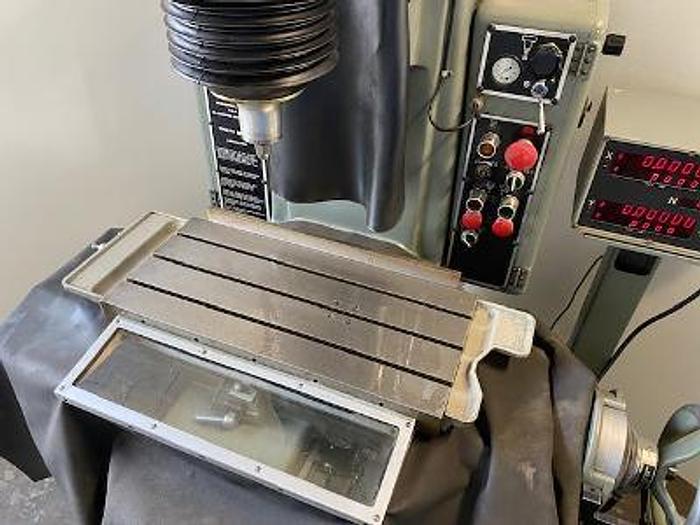

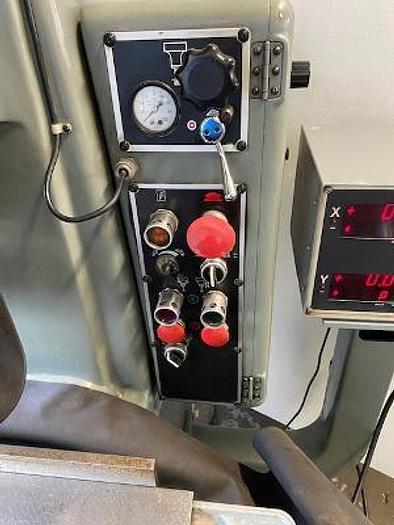

MOORE G-18 JIG GRINDING MACHINE
Sold
MOORE G-18 JIG GRINDING MACHINE
Location:Venetia, PA
Description
MOORE G-18 JIG GRINDING MACHINE
ORIGINAL PAINT AND EXCELLENT CONDITION
CATALOG SPECIFICATIONS:
EQUIPPED WITH:
40,000 RPM SPINDLE
HARDENED BEDWAYS
1 AXIS DIGITAL READOUT
BIJUR SPRAY MIST SYSTEM
MISC. QUILLS, HOLDDOWNS & WRENCHES
MACHINE MAY BE INSPECTED UNDER POWER
Specifications
| Manufacturer | Moore |
| Model | G-18 |
| Year | 1987 |
| Condition | Used |
| Stock Number | 2009 |
| Table travels | 11" x 19" |
| Table to wheel collet | 18" MAX., 2" MIN. |
| Spindle speeds | 40 - 250 INFINITE |
| Spindle feeds | 4 - 240 SPM |
| Spindle travel | 3-5/8" |
| Dimensions | 80" x 65" x 102" HIGH |
| Approx. overall weight | 3800 LBS. |
