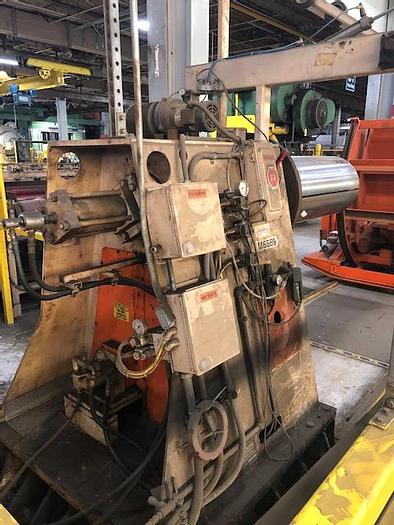

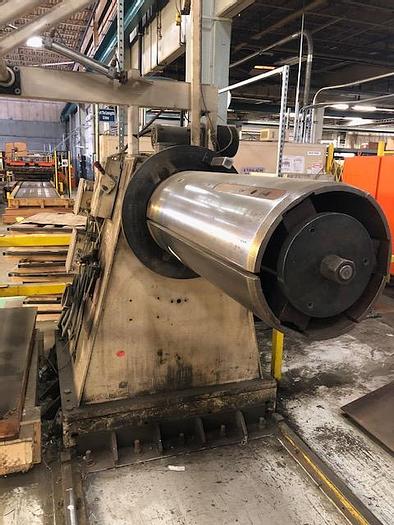

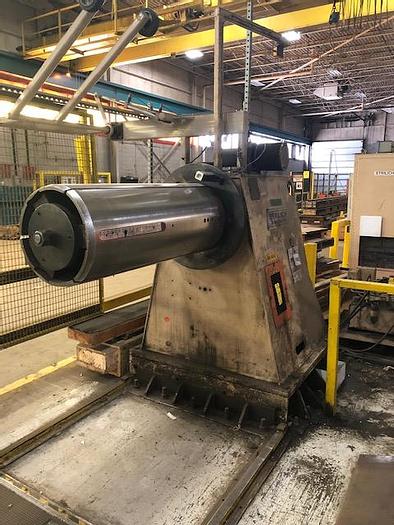

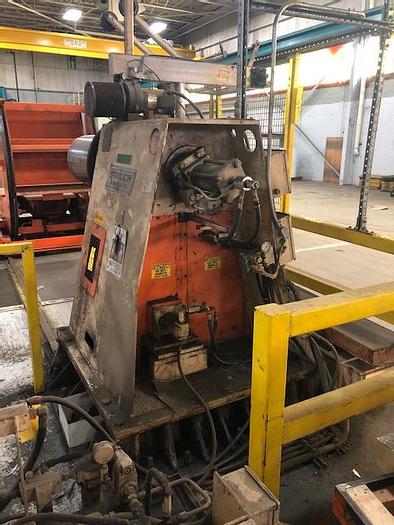

20,000 LB x 48" WIDE STIRLICH MOTORIZED UNCOILER

20,000 LB x 48" WIDE STIRLICH MOTORIZED UNCOILER

Contact us for price

Venetia, PA

orCall 724-942-3382

Description

20,000 LB x 48" WIDE STIRLICH MOTORIZED UNCOILER Heavy steel cover leaves with tapered nose for easy coil loading Graduated scale provided on cover leaves for ease of coil positioning Alloy mandrel shaft mounted in heavy duty tapered roller bearings Wedge type expansion provides coil stability and constant hydraulic loading through the entire expansion range Forward and reverse feed-up threading drive actuated through hydraulic motor with pneumatic clutch arrangement Air-cooled pneumatic drag brake automatic pressure control to adjust back-tension proportionate to coil outside diameter Hydraulic power supplied from main hydraulic unit Heavy duty welded steel construction base

Specifications

ManufacturerStirlich
ConditionUsed
Stock Number2003f
Stk2003f
Coil weight20,000 lbs. maximum
Coil width48” maximum, 18” minimum
Coil o.d72” maximum, 24” minimum
