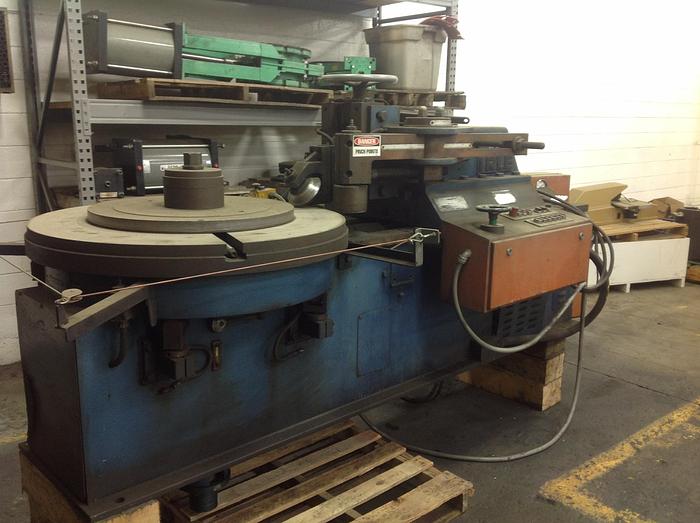

IRLE MODEL B-10H RIM/RING FORMER
IRLE MODEL B-10H RIM/RING FORMER
Contact us for price
Location:Venetia, PA
orCall 724-942-3382
Description
IRLE MODEL B-10H RIM/RING FORMER
Stk# 1301b
CAPACITIES:
2-3/8" x 5/8" to 20" Min.Dia.
2-3/4" x 3/4" to 40" Min. Dia.
3-1/4" x 3/4" to 60" Min. Dia.
3-1/2" x 3-1/2" x 5/16" to 60" Min. Dia
3" x 3" x 5/16" to 60" Min. Dia.
EQUIPPED WITH:
Adjustable Support Rolls
Hydraulic Power Unit
Electrical Control System
* PRELIMINARY SPECIFICATIONS SUBJECT TO VERIFICATION
PRICE...FOB... COLUMBIA,TN ...
Specifications
| Manufacturer | IRLE |
| Model | Not Listed |
| Condition | Used |
| Serial Number | 1297 |
| Stock Number | 1301B |
| Minimum i.d | 8" |
| O.d. range | 17" 26" & 40" |
| Maximum o.d. with 3-roller bending | No Limit |
| Face plate rotations | 2/3/5 RPM |
| Flat on flat | 1-3/4" x 1/2" to 8" Min. Dia. |
| Angles leg out | 3" x 3" x 3/8" to 40" Min. Dia. |
| Angles leg in | 2-3/8" x 2-3/8" x 1/4" to 40" Min. Dia. |
| Bar | 2-1/8" to 40" Min. Dia. |
| Flats on edge | 7/8" x 4" to 40" Min. Dia. |
| Channels in | 3-1/2" to 40" Min. Dia. |
| Channels out | 3-1/2" to 40" Min. Dia. |
| Tees/in | 3" to 40" Min. Dia. |
| Tees/out | 3-1/2" to 40 Min. Dia. |
| Approximate overall dimensions | 140" L-R x 60" F-B x 60" H |
| Approximate weight | 10,000 Lbs. |
