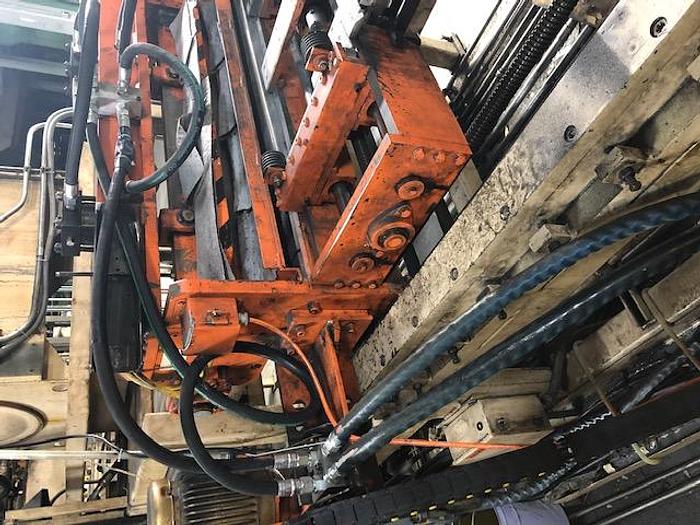

48" WIDE x .036 STIRLICH HYDRAULIC SHEAR

48" WIDE x .036 STIRLICH HYDRAULIC SHEAR

Contact us for price

Location:Venetia, PA

orCall 724-942-3382

Description

48" WIDE x .036 STIRLICH HYDRAULIC SHEAR SERIAL #: -Four (4) side high carbon - high chrome shear blades, upper bowtie, lower straight rake blade. -170 Stroke Per Minute - 40 Cuts Per Minute -Shear ram actuated through two (2) heavy duty hydraulic cylinders and rides on replaceable bronze wear plates. -Rack & Pinion Shear Ram Design. -Non-Marking Stripper Bar. -Dedicated hydraulic pumping unit for shear actuation. -Complete controls with start/stop/crop/inch buttons. -Shear head mounted on adjustable slide base adjusted through precision jack screws via AC gear motor to handle door lengths from 72" - 96.50". -Shear mounting includes squaring adjustment to allow cuts to be taken out of perpendicular to the line´s center axis. This provides for slight compensation to be made to attain even diagonal measurements on panels produced from cambered material. -Two (2) hardened roller type entry guide assembly is mounted on shear and includes a +/- 1/2" lateral micro-adjustment with center indicating position pointer. This single point adjustment allows for slight off-center positioning of the incoming strip. It would be utilized in conjunction with the feeder´s entry guide to attain registry of cambered material within the press dies. -Guides are adjusted relative to centerline through left and right hand acme screw arrangement with a hand wheel. -Interleaving powered belt conveyor sections.

Specifications

ManufacturerStirlich
Year2000
ConditionUsed
Stock Number2003g
Stk2003g
-strip width50" Maximum
-material thickness0.036" Maximum, 0.015" Minimum
-maximum yield35,000 psi
-in storageGriffith, Indiana
