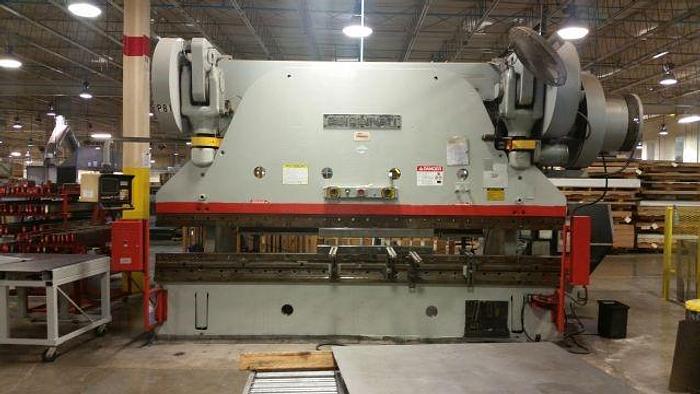

400 TON X 14´ CINCINNATI MECHANICAL PRESS BRAKE

400 TON X 14´ CINCINNATI MECHANICAL PRESS BRAKE

Contact us for price

Venetia, PA

orCall 724-942-3382

Description

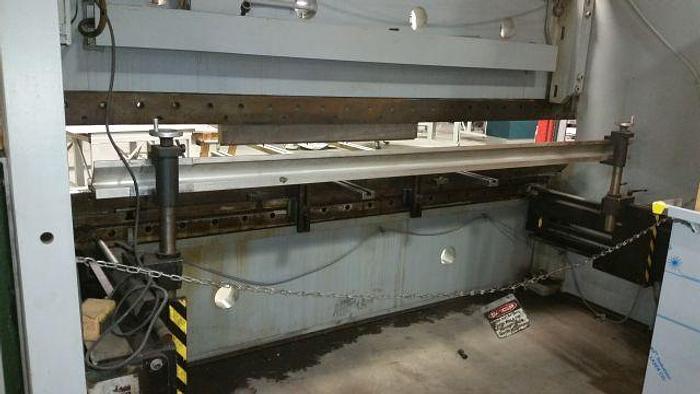

400 TON X 14´ CINCINNATI MECHANICAL PRESS BRAKE S/N 41666 MODEL 13X10 DIE SPACE, S.D.A.U. ----------------------- 12" STROKES PER MINUTE --- ( HIGH ) ----------- 30 STROKES PER MINUTE --- ( LOW ) ------------ 6.4 MAIN DRIVE MOTOR -------------------------- 20 HP A.C. EQUIPPED WITH --- AIR CLUTCH AND BRAKE CRANK TYPE LUBRICATION DUAL PALM BUTTON CONTROLS KEY SELECT CONTROL ELECTRIC FOOT PEDAL CONTROL SINGLE STROKE BRAKE OVERRUN MONITOR MILLED AND DRILLED FOR ANGLES REQUIRES 38" PIT FOR BED UPPER DIE CLAMPS LOWER DIE HOLDER HURO CNC BACKGAUGE COLUMBIA,TN 38401

Specifications

ManufacturerCincinnati
Model13 x 10
Year1979
ConditionUsed
Stock Number1703a
Stk1703a
Capacity, bottom stroke400 TON
Capacity, mid stroke260 TON
Overall length of bed and ram14´
Distance between housings10´6"
Stroke4"
Adjustment of ram6"
Throat depth10"
Approx weight50500 LBS
